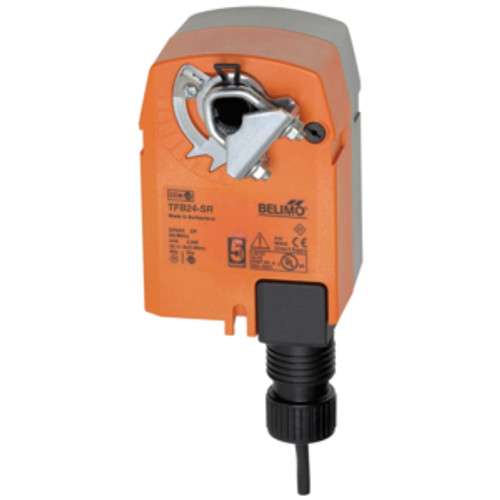

Damper Actuator, 54 in-lb [6 Nm], Electrical fail-safe, AC/DC 24 V, modulating, 2...10 V
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Power Consumption (Running): 11 W
- Power Consumption (Holding): 3 W
- Power Consumption For Wire Sizing: 22 VA
- Torque: 54\xa0in-lb [6\xa0Nm]
- Control Type: DC\xa02...10\xa0V
- Direction Of Motion Motor: selectable with switch 0/1
- Direction of Rotation (Fail-Safe): Reversible with switch
- Manual Override: External push button
- Angle of Rotation: 95
- Running Time (Motor): 4\xa0s / 90°
- Running Time (Fail-safe): <4 s
- Protection category: IP54
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
- Download product literature 6
Brand: Belimo
SKU: NKQB24-SR
