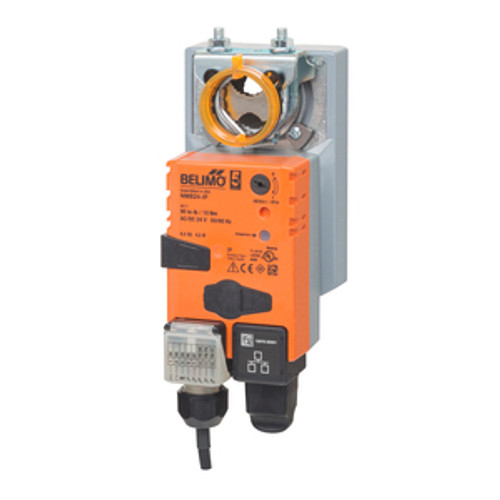

Damper Actuator, 10 Nm, Non fail-safe, AC/DC 24 V, modulating, communicative, Hybrid, Cloud, BACnet IP, Modbus TCP
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 4.5 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 6 VA
- Torque : 10\xa0Nm
- Control Type : BACnet/IP ; Modbus TCP ; Cloud
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 150\xa0s / 90°
- Running Time range (Motor) : 70...220\xa0s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa01
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa01
- Ambient Temperature : -22...122°F [-30...50°C]
