ePIV,5",2 Way,495 GPM,w/ Non-Spring,24V,MFTSpecifications PI-TechnologyElectronic Sensor TechnologyElectromagnetic ANSI Class125 Actuator TypeNon fail-safe ApplicationWater Close-off Pressure100 psi Control TypeMFT/Programmable Degree of ProtectionIP54NEMA 2UL Enclosure Type 2 Electrical ConnectionCable End FittingFlange Flow495 Manual OverrideExternal push button Pattern2-way Power Consumption (Running)9.5 W Pressure IndependentYES Product TypeCombo Protection categoryIP54 Running Time (Motor)90 sec Torque360 in-lb [40 Nm] TrimStainless steel Valve Size5" [125] Voltage AC/DCAC/DC 24 V Technical Information P6500S-495+GRX24-PI Technical Data Sheet ePIV with AR/GR/AKR/GKR Installation Instruction

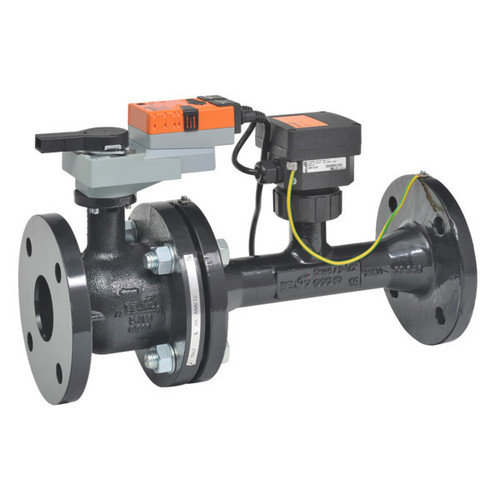

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.
