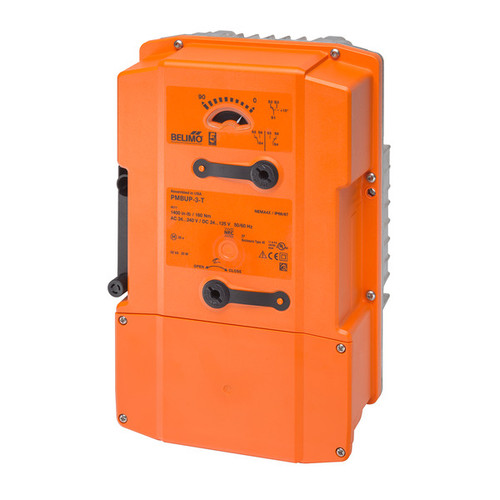

Damper Actuator, 1400 in-lb [160 Nm], Non fail-safe, AC 24...240 V / DC 24...125 V, On/Off, Floating point, 2x SPDT, terminals
Technical Specifications:
- Voltage AC/DC: AC\xa024...240\xa0V / DC\xa024...125\xa0V
- Power Consumption (Running): 20 W
- Power Consumption (Holding): 6 W
- Power Consumption For Wire Sizing: with 24 V 20 VA / with 240 V 52 VA
- Auxiliary Switches: 2x SPDT
- Torque: 1400\xa0in-lb [160\xa0Nm]
- Control Type: Floating/3-point
- Direction Of Motion Motor: reversible with app
- Manual Override: 7 mm hex crank, supplied
- Angle of Rotation: 95
- Running Time (Motor): 35\xa0s / 90°
- Protection category: IP66/67
- Degree Of Protection NEMA: NEMA\xa04X
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa04X
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Belimo
SKU: PMBUP-3-T
