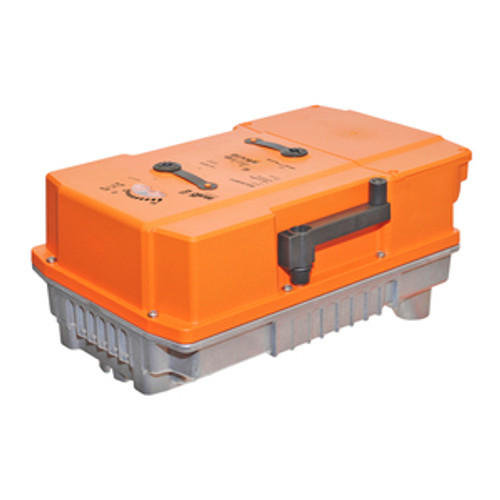

Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, On/Off, Floating point, 2x SPDT, terminals
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
- Power Consumption (Running) : 20 W
- Power Consumption (Holding) : 6 W
- Power Consumption For Wire Sizing : with 24 V 20 VA / with 240 V 52 VA
- Auxiliary Switches : 2x SPDT
- Control Type : Floating/3-point
- Direction Of Motion Motor : reversible with app
- Manual Override : 7 mm hex crank, supplied
- Angle of Rotation : 90
- Running Time (Motor) : 35 s / 90°
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
