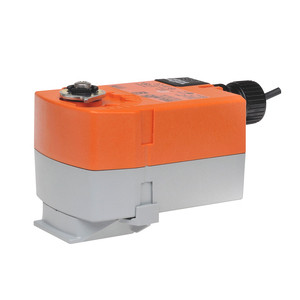

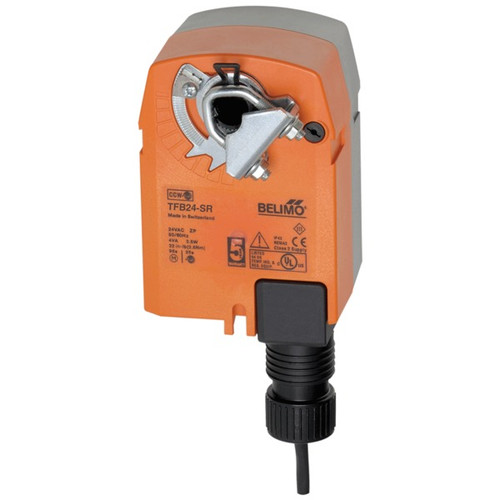

Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, modulating
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Power Consumption (Running): 2.5 W
- Power Consumption (Holding): 1 W
- Power Consumption For Wire Sizing: 4 VA
- Control Type: DC\xa02...10\xa0V
- Direction Of Motion Motor: selectable with switch 0/1
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Angle of Rotation: 95
- Running Time (Motor): 95\xa0s
- Running Time (Fail-safe): <25\xa0s
- Protection category: IP42
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
Product Literature:
Brand: Belimo
SKU: TFRB24-SR
