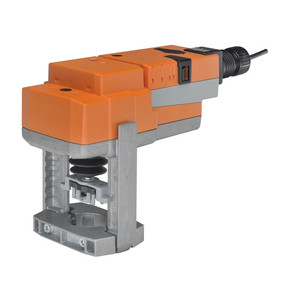

Belimo Globe Valve Linkage with LV and SV series actuatorsConfigurableValve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulatingActuator fitted
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 2 W
- Power Consumption (Holding) : 0.5 W
- Power Consumption For Wire Sizing : 5 VA
- Force : 500 N [115 lbf]
- Control Type : DC 2...10 V
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : 4 mm hex crank (shipped w/actuator)
- Stroke : 0.6" [15 mm] LV, 3/4" [20 mm] SV
- Running Time (Motor) : 90 s /
- Running Time range (Motor) : 90 or 150 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
