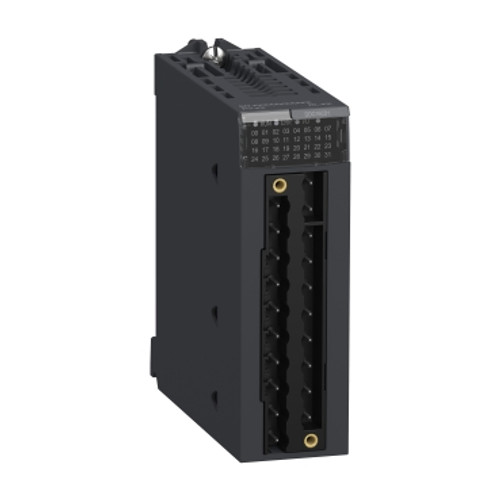

This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
- Range of Product : Modicon X80
- Product or Component Type : Discrete output module
- Discrete output number : 16 EN/IEC 61131-2
- Discrete output type : Solid state
- discrete output logic : Positive
- Discrete output voltage : 24 V 19...30 V DC
- discrete output current : 0.5 A
- Current per channel : 0.625 A
- Maximum current per module : 10 A
- Maximum leakage current : 0.5 mA at state 0
- Maximum voltage drop : <1.2 V at state 1
- Insulation resistance : > 10 MOhm 500 V DC
- Power dissipation in W : 4 W
- Response time on output : 1.2 ms
- Paralleling of outputs : Yes : 2 maximum
- Typical current consumption : 79 mA 3.3 V DC
- MTBF reliability : 410000 H
- Output overload protection : With electronic circuit breaker 1.5 In < Id < 2 In, With current limiter
- Output overvoltage protection : With transil diode
- Output short-circuit protection : With 2 A external fuse
- Reverse polarity protection : Reverse mounted diode
- Voltage detection threshold : < 14 V DC preactuator fault, > 18 V DC preactuator at state 0
- Maximum tungsten load : 6 W
- Switching frequency : 0.5/LI² Hz
- Load impedance ohmic : > 48 Ohm
- Net Weight : 0.26 lb(US) (0.12 kg)
- IP Degree of Protection : IP20
- Vibration resistance : 3 gn
- Shock resistance : 30 gn
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Ambient Air Temperature for Operation : 32…140 °F (0…60 °C)
- Relative humidity : 5…95 % 131 °F (55 °C) without condensation
- Operating altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Category : US1PC3418160
- Discount Schedule : PC34
- GTIN : 3595863910469
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.19 in (5.56 cm)
- Package 1 Width : 4.37 in (11.096 cm)
- Package 1 Length : 4.63 in (11.759 cm)
- Package 1 Weight : 5.64 oz (160.0 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 15
- Package 2 Height : 5.91 in (15 cm)
- Package 2 Width : 11.81 in (30 cm)
- Package 2 Length : 15.75 in (40 cm)
- Package 2 Weight : 6.70 lb(US) (3.04 kg)
- Unit Type of Package 3 : P06
- Number of Units in Package 3 : 240
- Package 3 Height : 29.53 in (75.0 cm)
- Package 3 Width : 23.62 in (60.0 cm)
- Package 3 Length : 31.50 in (80.0 cm)
- Package 3 Weight : 130.07 lb(US) (59 kg)
- Warranty : 18 months
