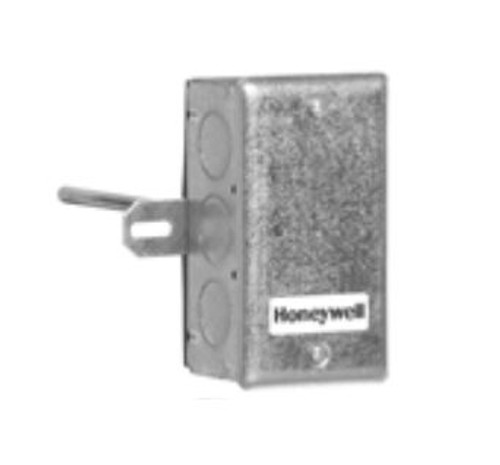

20K ohm NTC Electronic Temperature Sensor designed for use with electronic controllers in domestic or commercial heating and cooling systems• For duct discharge air• 20K ohm NTC sensor element• Operating range -40-250 F• 18 in. insertion element • Solid state components not affected by dust or dirt.|Duct Temperature Sensor: 20K ohm NTC: 18in
- For Use With : Excel 10- 50- 80- 100- 500 Controllersvolt
- Maximum Operating Ambient Temperature : 121degree Celsius; 250degree Fahrenheit
- Sensor Functions : Temperature; 20 kΩ @ 77 (25 °C)degree Fahrenheit
- Overall Width : 59 mm; 2-5/16 in
- SKU Type : Electric
- Maximum Shipping & Storage Temperature : 71degree Celsius; 160degree Fahrenheit
- Probe Insertion Length : 457millimetre; 18inch
- Minimum Operating Ambient Temperature : -40degree Celsius; -40degree Fahrenheit
- Temperature Sensor Output : 20K ohm at 77F (25C)
- Minimum Shipping & Storage Temperature : -34degree Celsius; -30degree Fahrenheit
- Maximum Operating Ambient Temperature : 250degree Fahrenheit; 121degree Celsius
