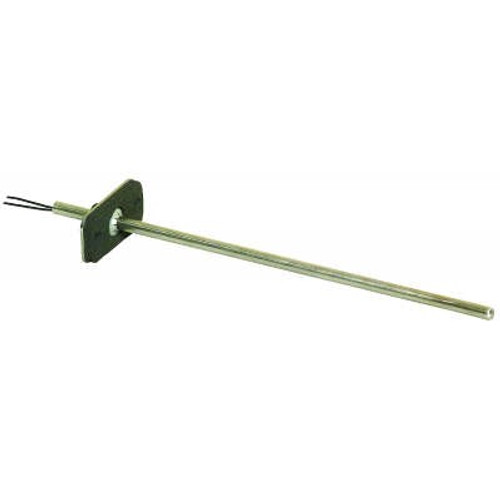

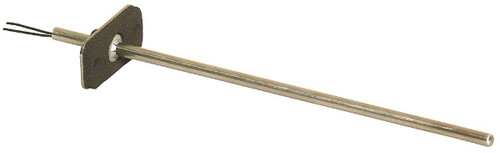

PT1000 air temperature sensors functions as primary and/or secondary sensors in electronic control systems.• No settings or calibration required• Solid state components not affected by dust or dirt• 8 inch insertion element• Fast reacting• Rugged aluminum insertion probe• Mounts on duct or plenum surface with integral mounting flange: or in a 2 x 4 in. junction box|Duct Temperature Sensor: 1097 ohm at 77F PTC: 8 in. insertion
- Dimensions (in.) : 1 in. high x 2 in. wide x 9 in. deep
- Dimensions (mm) : 25 mm high x 51 mm wide x 229 mm deep
- Includes : 6 in. leadwires
- Item Type : Product
- Sensor : 1097 ohm @ 77 F PTC
- Operating Temperature Range (F) : 40 F to 150 F
- Operating Temperature Range (C) : 4 C to 66 C
- Shipping and Storage Temperature Range (F) : -30 F to +160 F
- Shipping and Storage Temperature Range (C) : -34 C to +71 C
- Insertion Length (in.) : 8 in.
- Insertion Length (mm) : 203 mm
- Ambient Temperature Range (F) : 250 F Maximum
- Ambient Temperature Range (C) : 121 C Maximum
- Mounting Type : Flat Duct or Plenum Surface
- SKU Type : Electric
