1 1/2 X 1 1/4 2NC BRASS 10.1/F
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Power Consumption (Running): 1 W
- Power Consumption (Holding): 0.2 W
- Power Consumption For Wire Sizing: 1.5 VA
- Torque: 18\xa0in-lb [2\xa0Nm]
- Control Type: Floating/3-point
- Direction Of Motion Motor: by electrical installation
- Manual Override: Disengage with magnet
- Angle of Rotation: 0...287.5
- Running Time (Motor): 35\xa0s / 90°
- Protection category: IP20
- Degree Of Protection NEMA: NEMA\xa01
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa01
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5

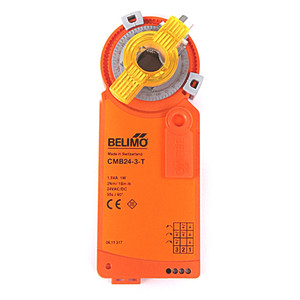

Brand: Belimo
SKU: CMB24-3-T
