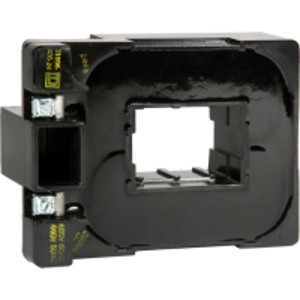

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SG Series A contactor, an 8536SG Series A starter or an 8903SX Series A lighting contactor. The coil is rated for 440/480 VAC 50/60 Hz. The inrush power of this coil is 2970 VA. It has an average sealed consumption of 212 VA. This coil has a height of 140.5 mm, a width of 101.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
- Product or Component Type : Coil
- Accessory / separate part destination : Class 8502 type SG contactor, Class 8903 type SY/SX lighting contactor, Class 8910 type SYD368 (series A) contactor
- NEMA size : 5
- [Ue] rated operational voltage : 480 V AC 60 Hz, 440 V AC 50 Hz
- Inrush power in VA : 2970 VA
- Average consumption : 212 VA, 250 VA
- Height : 5.53 in (140.5 mm)
- Width : 3.98 in (101.2 mm)
- Depth : 1.78 in (45.3 mm)
- Category : US1CP1018079
- Discount Schedule : CP10
- GTIN : 785901326939
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.70 in (14.478 cm)
- Package 1 Width : 4.10 in (10.414 cm)
- Package 1 Length : 6.50 in (16.51 cm)
- Package 1 Weight : 2.63 lb(US) (1.193 kg)
- Warranty : 18 months
