1/4 X 5/16 2NC BRASS 10.1/F AC
Technical Specifications:
- Voltage AC/DC: AC\xa0100...240\xa0V
- Power Consumption (Running): 9 W
- Power Consumption (Holding): 4.5 W
- Power Consumption For Wire Sizing: 21 VA
- Auxiliary Switches: 2x SPDT
- Torque: 270\xa0in-lb [30\xa0Nm]
- Control Type: On/Off
- Direction Of Motion Motor: selectable by mounting L/R
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Manual Override: 5 mm hex crank (3/16"" Allen), supplied
- Angle of Rotation: 95
- Running Time (Motor): 75\xa0s / 90°
- Running Time (Fail-safe): <20 s
- Protection category: IP54
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5

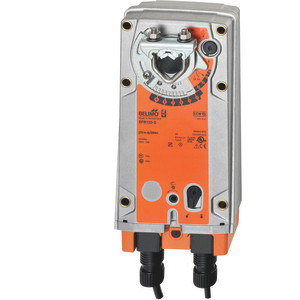

Brand: Belimo
SKU: EFB120-S
