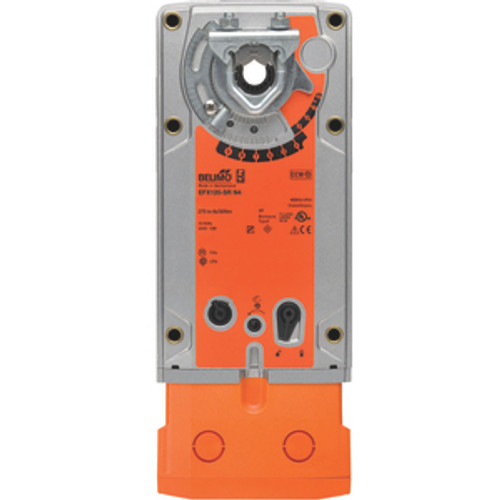

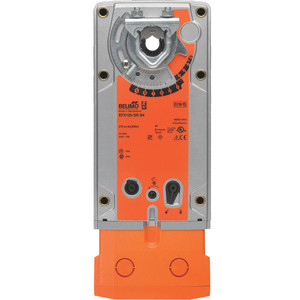

ConfigurableDamper Actuator, 270 in-lb [30 Nm], Spring return, AC 100...240 V, 2...10 V, NEMA 4, Modulating
- Voltage AC/DC : AC 100...240 V
- Power Consumption (Running) : 9.5 W
- Power Consumption (Holding) : 4.5 W
- Power Consumption For Wire Sizing : 21 VA
- Torque : 270 in-lb [30 Nm]
- Control Type : DC 2...10 V
- Direction Of Motion Motor : selectable with switch 0/1
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Manual Override : 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation : 95
- Running Time (Motor) : 95 s / 90°
- Running Time (Fail-safe) : <20 s
- Protection category : IP66
- Degree Of Protection NEMA : NEMA 4
- Enclosure Type : UL Enclosure Type 4
- Ambient Temperature : -22...122°F [-30...50°C]
