Technical Specifications:
- Voltage AC/DC: AC 100...240 V
- Power Consumption (Running): 9.5 W
- Power Consumption (Holding): 4.5 W
- Power Consumption For Wire Sizing: 21 VA
- Auxiliary Switches: 2x SPDT
- Torque: 270 in-lb [30 Nm]
- Control Type: DC 2...10 V
- Direction Of Motion Motor: selectable with switch 0/1
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Manual Override: 5 mm hex crank (3/16"" Allen), supplied
- Angle of Rotation: 95
- Running Time (Motor): 95 s / 90°
- Running Time (Fail-safe): <20 s
- Protection category: IP66
- Degree Of Protection NEMA: NEMA 4
- Enclosure Type: UL Enclosure Type 4
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5

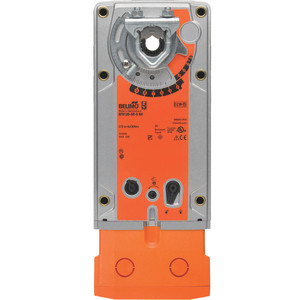

Brand: Belimo
SKU: EFX120-SR-S N4
