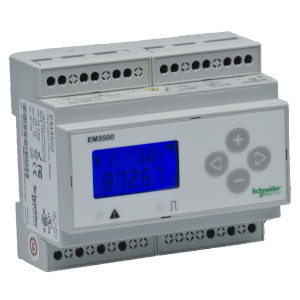

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI, ANSI C12.20 0.2% accuracy, IEC 62053-22 class 0.2S. Native BACnet is provided to suit a wide variety of applications. Additional 2 pulse inputs provide an easy way to incorporate simple WAGES sensors using a BACnet system. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm.
- Range : PowerLogic
- range of product : PowerLogic EM3500
- Device short name : EM3561
- Product or Component Type : Energy meter
- Poles description : 3P + N
- Device Application : Sub billing, Partial meter
- Measurement accuracy : Power +/- 0.2 %, Energy +/- 0.2 %
- input type : Split core current transducer 0.333 V or 1 V
- Rated voltage : 90…347 V
- Network Frequency : 60 Hz, 50 Hz
- Technology Type : Electronic
- Display Type : Backlit LCD
- Measurement current : 5…32000 A
- Display digits : 5
- Tamperproof of settings : Protected by access code
- Communication port protocol : BACnet MS/TP 9600 bauds...115200 bauds (automatic detection) - 2-wire
- Communication port support : Screw terminal block RS485
- Communication Service : Total cumulated active energy, Total cumulated energy
- data recording : Energy consumption logs
- Demand intervals : External synchronisation to communication, Fixed or rolling block
- Local signalling : Red LED threshold reached, Green flashing LED output signal
- number of accumulator inputs : 2 pulse
- Power consumption in VA : 5 VA 347 V AC between phase and neutral), 5 VA 600 V AC between phases)
- Power consumption in W : 3 W 300 V
- Ride-through time : 100 ms 120 V AC
- Mounting Mode : Clip-on, By screws
- Mounting Support : DIN rail
- Standards : UL 508, CSA C22.2 No 14-05, IEC 61010-1
- Product certifications : CE IEC 61010, CULus UL 508
- Relative humidity : 0…95 %
- Ambient air temperature for operation : -22…158 °F (-30…70 °C)
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Color : Dark grey
- 9 mm pitches : 12
- Width : 4.21 in (107 mm)
- Height : 3.58 in (91 mm)
- Depth : 2.32 in (59 mm)
- Category : US10PL109798
- Discount Schedule : 0PL1
- GTIN : 3606486795835
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 3.80 in (9.65 cm)
- Package 1 Width : 8.30 in (21.08 cm)
- Package 1 Length : 9.50 in (24.13 cm)
- Package 1 Weight : 19.20 oz (544.311 g)
