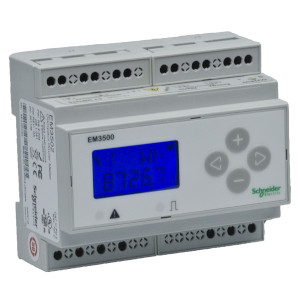

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xxA models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Not recommanded for high harmonic application. Current input from 20A to 5000A with the Rogowski coil, ANSI C12.20 0.5% accuracy, IEC 62053-22 class 0.5S. Native BACnet is provided to suit a wide variety of applications. Additional 2 pulse inputs provide an easy way to incorporate simple WAGES sensors using a BACnet system. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm and product weight 280 g.
- Range : PowerLogic
- range of product : PowerLogic EM3500
- Device short name : EM3561A
- Product or Component Type : Energy meter
- Poles description : 3P + N
- Device Application : Sub billing, Partial meter
- Measurement accuracy : Power +/- 0.5 %, Energy +/- 0.5 %
- input type : Rogowski coil 50...5000 A
- Rated voltage : 90…347 V
- Network Frequency : 60 Hz, 50 Hz
- Technology Type : Electronic
- Display Type : Backlit LCD
- Measurement current : 20…5000 A
- Display digits : 5
- Tamperproof of settings : Protected by access code
- Communication port protocol : BACnet MS/TP 9600 bauds...115200 bauds (automatic detection) - 2-wire
- Communication port support : Screw terminal block RS485
- Communication Service : Total cumulated energy, Total cumulated active energy
- data recording : Energy consumption logs
- Demand intervals : Fixed or rolling block, External synchronisation to communication
- Local signalling : Red LED threshold reached, Green flashing LED output signal
- number of accumulator inputs : 2 pulse
- Power consumption in VA : 5 VA 347 V AC between phase and neutral), 5 VA 600 V AC between phases)
- Power consumption in W : 3 W 300 V
- Ride-through time : 100 ms 120 V AC
- Mounting Mode : By screws, Clip-on
- Mounting Support : DIN rail
- Standards : CSA C22.2 No 14-05, IEC 61010-1, UL 508
- Product certifications : CE IEC 61010, CULus UL 508
- Relative humidity : 0…95 %
- Ambient air temperature for operation : -22…158 °F (-30…70 °C)
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Color : Dark grey
- 9 mm pitches : 12
- Width : 4.21 in (107 mm)
- Height : 3.58 in (91 mm)
- Depth : 2.32 in (59 mm)
- Category : US10PL109798
- Discount Schedule : 0PL1
- GTIN : 3606486795842
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 3.80 in (9.65 cm)
- Package 1 Width : 8.30 in (21.08 cm)
- Package 1 Length : 9.50 in (24.13 cm)
- Package 1 Weight : 19.20 oz (544.311 g)
