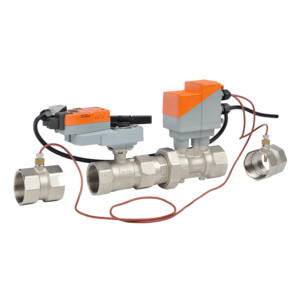

ConfigurableElectr. 2-way PI-CCV Belimo Energy Valve??fail-safe, AC/DC 24 V, BACnet IP, BACnet MS/TP, Modbus RTU, Modbus TCP, MP-Bus, DN 1"[25], Internal thread, GPM 18.2
- Angle of Rotation : 90
- Close-off Pressure : 200 psi
- End Fitting : Internal thread
- Flow : 18.2
- Pattern : 2-way
- PI-Technology : Electronic
- Pressure Independent : YES
- Sensor Technology : Ultrasonic with glycol and temperature compensation
- Trim : Stainless steel
- Valve Size : 1" [25]
- Actuator Type : Electrical fail-safe
- Control Type : DC 2...10 V
- Degree of Protection : IP54, NEMA 1, UL Enclosure Type 1
- Electrical Connection : cable
- Manual Override : External push button
- Power Consumption (Running) : 14 W (0.5" to 2"), 16 W (2.5" to 6")
- Running Time (Motor) : 90 s
- Voltage AC/DC : AC/DC 24 V
