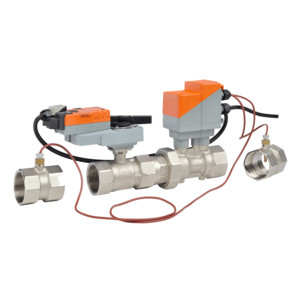

ConfigurableElectr. 2-way PI-CCV Belimo Energy Valve?? AC/DC 24 V, BACnet IP, BACnet MS/TP, Modbus RTU, Modbus TCP, MP-Bus, DN 1 1/2"[40], Internal thread, GPM 39.6
- Angle of Rotation : 90
- Close-off Pressure : 200 psi
- End Fitting : Internal thread
- Flow : 39.6
- Pattern : 2-way
- PI-Technology : Electronic
- Pressure Independent : YES
- Sensor Technology : Ultrasonic with glycol and temperature compensation
- Trim : Stainless steel
- Valve Size : 1.5" [40]
- Actuator Type : Non fail-safe
- Control Type : DC 2...10 V
- Degree of Protection : IP54, NEMA 1, UL Enclosure Type 1
- Electrical Connection : cable
- Manual Override : External push button
- Power Consumption (Running) : 5 W
- Running Time (Motor) : 90 s
- Voltage AC/DC : AC/DC 24 V
