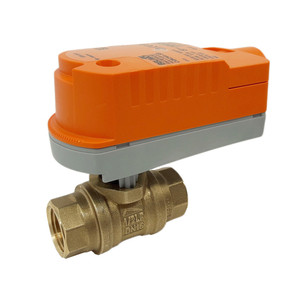

Potable water valve, 2-way, DN 15, Internal thread, ps, Fluid temperature -4.0...212°F [-20...100°C]ConfigurableValve Actuator, Electrical fail-safe, AC 100...240 V, On/OffActuator fitted
- Voltage AC/DC : AC 100...240 V
- Power Consumption (Running) : 3 W
- Power Consumption (Holding) : 0.5 W
- Power Consumption For Wire Sizing : 7 VA
- Control Type : On/Off
- Protection category : IP40
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Pattern : 2-way
- Cv : 32
- Potable water certificate : NSF/ANSI 61 ; NSF/ANSI 372
- Fluid : Potable water
- Flow temperature : -4.0...212°F [-20...100°C]
- Body Pressure Rating : 600 psi CWP
- Differential pressure Δpmax : 200 psi
- End Fitting : Internal thread
- Valve Size : 0.5" [15]
