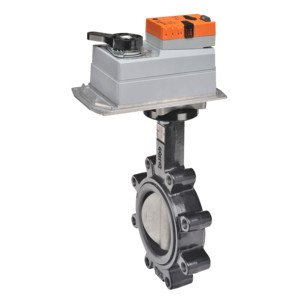

Potable water valve (BV), 4", 2-way, ANSI Class Consistent with 125, Cv 600 ConfigurableValve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, terminalsActuator fitted
- Actuator Type : Non fail-safe
- ANSI Class : Consistent with 125
- Controllable Flow Range : 90° rotation
- Cv : 600
- Degree of Protection : IP54, NEMA 2, UL Enclosure Type 2
- Electrical Connection : terminals
- End Connection : Lug types
- End Fitting : Flange
- Fluid : Potable water
- Manual Override : External push button
- Pattern : 2-way
- Power Consumption (Holding) : 3 W
- Power Consumption (Running) : 12 W
- Pressure Independent : NO
- Product Type : Combo
- Running Time (Motor) : 35 s, constant, independent of load
- Valve Size : 4" [100]
- Voltage AC/DC : AC/DC 24 V
