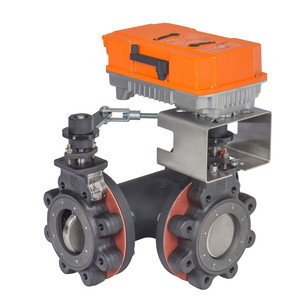

Belimo product F780-300SHP+PRBUP-MFT-T technical information.
Technical Specifications:
- Angle of Rotation: 90
- ANSI Class: 300
- Controllable Flow Range: Quarter turn, mechanically limited
- Cv: 228
- End Connection: Lug types
- End Fitting: Flange
- Fluid: Chilled or hot water, up to 60% glycol
- Pattern: 3-way
- Pressure Independent: NO
- Valve Size: 3"" [80]
- Actuator Type: Non fail-safe
- Auxiliary Switches: 2 x SPDT
- Control Type: MFT/Programmable
- Degree of Protection: IP66/67, NEMA 4X, UL Enclosure Type 4X
- Electrical Connection: terminals
- Manual Override: 7 mm hex crank, supplied
- Power Consumption (Holding): 6 W
- Power Consumption (Running): 20 W
- Running Time (Motor): Default 35 s, variable 30...120 s
- Voltage AC/DC: AC 24...240 V / DC 24...125 V
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
- Download product literature 6
- Download product literature 7
- Download product literature 8
- Download product literature 9
Brand: Belimo
SKU: F780-300SHP+PRBUP-MFT-T
