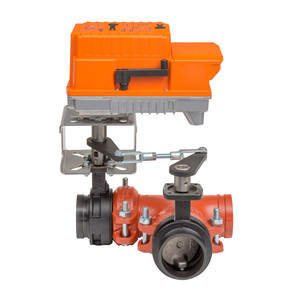

Butterfly Valve (BFV), 3", 3-way, ANSI Class Grooved AWWA, Cv 440 ConfigurableValve Actuator, Electrical fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TPModbus RTUMP-Bus, MFT/programmableActuator fitted
- Angle of Rotation : 90
- ANSI Class : Grooved AWWA
- Controllable Flow Range : 90° rotation
- Cv : 440
- End Connection : Grooved types
- End Fitting : Grooved
- Pattern : 3-way
- Pressure Independent : NO
- Valve Size : 3" [80]
- Actuator Type : Electrical fail-safe
- Auxiliary Switches : 2 x SPDT
- Control Type : MFT/Programmable
- Degree of Protection : IP66/67, NEMA 4X, UL Enclosure Type 4X
- Electrical Connection : terminals
- Manual Override : 7 mm hex crank, supplied
- Power Consumption (Holding) : 9 W
- Power Consumption (Running) : 52 W
- Running Time (Motor) : Default 35 s, variable 30...120 s
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
