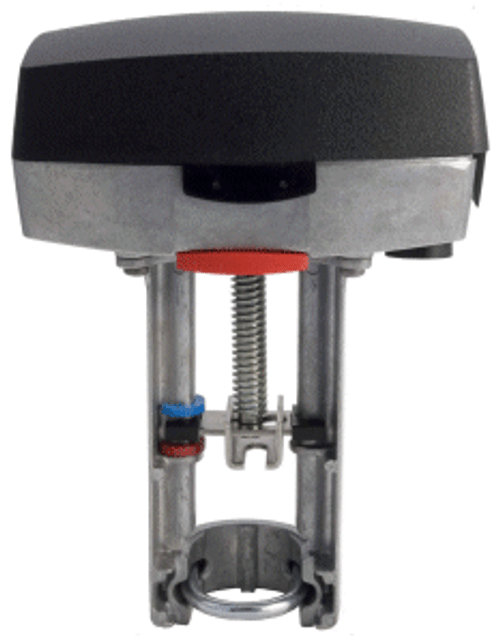

Actuator: (M400A-VB):|Actuator Type: Electric |Control Signal: Floating, Proportional |Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor |Loss of Power Type: Non-Spring Return |Power Input Voltage: 20 to 29 VDC, 24 VAC, 24 VDC |Force: 400 N |Mechanical Movement: Linear |Protection Rating: NEMA 1 |Product Line: Schneider Electric |Product Range: FORTA |Product Series: M400 |Actuator Use: Globe Valves
- [Us] rated supply voltage : 20...29 V DC~~
- [Us] rated supply voltage : 24 V AC/DC
- Actuator Product Range : SpaceLogic
- Actuator Product Series : M400
- Actuator Type : Electric
- analogue input range : 0...10 V DC
- analogue input range : 4...20 mA with 500 Ohm resistor
- Auxiliary Switch : 2 SPDT (optional)
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 214
- Control Signal : Floating
- Control Signal : Proportional/Modulating
- Feedback Signal : 2 to 10 VDC
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Force lbf : 89 lbf
- Force N : 400 N
- Global warming ; Total life cycle? : 214 kg CO2 eq.
- Humidity : 15…95 % non-condensing
- Loss of Power Type : Non-Spring Return
- Manufacturer : Schneider Electric
- Mechanical Movement : Linear
- Motor Type : Brushless DC motor
- Output Current : 30 mA
- Output Voltage : 16 V DC
- Override : Automatic reset
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Position Indicator : Green Push Stem with Color Markers
- Product Destination : globe valve
- Product Or Component Type : Actuator
- SCIP Number : 4f394b28-50f5-47f5-b920-ba35e4bef3da
- Selection Tools : Valve Selection Tool
- Stroke Auto Calibration : Yes
- Take-back : No
- Temperature Ambient Operating Range : 14…122 °F (-10…50 °C)
- Temperature Shipping and Storage Range : -13…149 °F (-25…65 °C)
