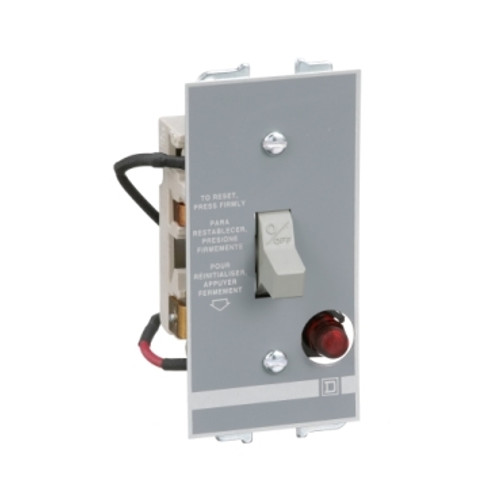

Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Recognized and CSA Certified for global applications. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This manual starter is not supplied with an enclosure. This manual starter is 4.13 inches tall, 1.69 inches wide and 2.22 inches deep. It weighs 0.33 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
- Product : Single Unit Manual Starter
- Type : F
- Overload Relay Type : Melting alloy
- Current Rating : 16 A
- Cable entry : Without
- Horsepower Rating : 1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC
- Voltage Rating : 277 V AC
- Number of Poles : 1P
- Control Unit : Toggle switch
- Number of Phases : 1 phase
- Pilot Light : No indicator
- Reset : Manual
- Motor starter type : Non reversing
- Electrical Connection : Screw clamp terminals
- Wire Gauge : AWG 14...AWG 12 copper
- Height : 4.13 in (104.90 mm)
- Width : 1.69 in (42.93 mm)
- Depth : 2.22 in (56.39 mm)
- Net Weight : 0.33 lb(US) (0.15 kg)
- Product Certifications : UL recognized E42243 CCN NLRV2, CSA LR25490 class 3211 05
- NEMA Enclosure Rating : Not rated (open device)
- Category : US10CP121101
- Discount Schedule : 0CP1
- GTIN : 785901554134
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 1.89 in (4.8 cm)
- Package 1 Width : 2.91 in (7.4 cm)
- Package 1 Length : 4.69 in (11.9 cm)
- Package 1 Weight : 4.96 oz (140.6 g)
- Unit Type of Package 2 : PAL
- Number of Units in Package 2 : 624
- Package 2 Height : 40.00 in (101.6 cm)
- Package 2 Width : 40.00 in (101.6 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 199.68 lb(US) (90.573 kg)
- Warranty : 18 months
