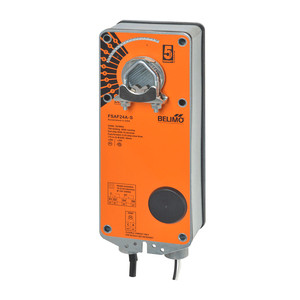

Fire & Smoke Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPST
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) FS : 32 VA
- Power Consumption (Holding) FS : 5 W, 8.5 VA, End stop 47 VA, 2 A slow blow fuse *
- Power Consumption For Wire Sizing : 40 VA
- Auxiliary Switches : 2x SPST
- Connection Supply : 2 Leads 32" [0.9\xa0m], 18\xa0AWG with 1/2" NPT conduit connector
- Connection Auxilary Switch : Cable 32" [0.9\xa0m], 4x 18\xa0AWG appliance cablewith 1/2" NPT conduit connector
- Torque : 180\xa0in-lb [20\xa0Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 25\xa0s / 90°
- Running Time (Fail-safe) : <15 s
- Protection category : IP40
- Degree Of Protection NEMA : NEMA\xa01
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa01
- Ambient Temperature : 32...122°F [0...50°C ]
