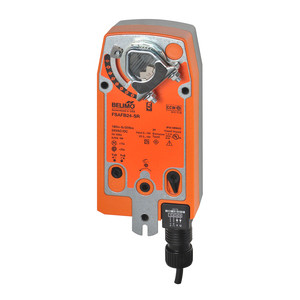

Fire & Smoke Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, modulating, 2...10 V
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 6.5 W
- Power Consumption (Running) FS : 6 W, 9.5 VA
- Power Consumption (Holding) FS : 3\xa0W, 5 VA
- Power Consumption For Wire Sizing : 10 VA
- Torque : 180\xa0in-lb [20\xa0Nm]
- Control Type : DC\xa02...10\xa0V
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Manual Override : 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation : 95
- Running Time (Motor) : 75\xa0s / 90°
- Running Time (Fail-safe) : <20 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
