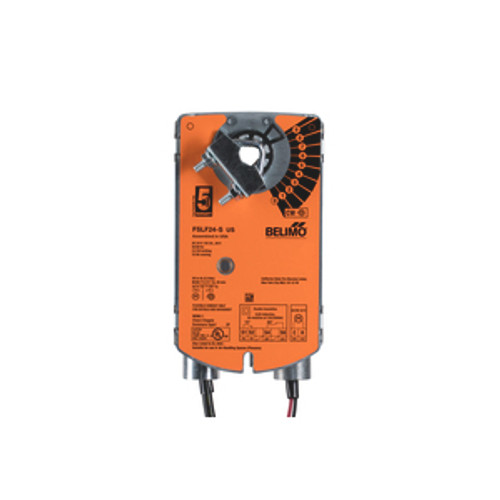

Fire & Smoke Actuator, 30 in-lb [3.5 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPST
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) FS : 15 VA
- Power Consumption (Holding) FS : 2.5 W, 3.5 VA, End stop 25 VA, 1 A slow blow fuse *
- Power Consumption For Wire Sizing : 24 VA
- Auxiliary Switches : 2x SPST
- Torque : 30 in-lb [3.5 Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 15 s / 90°
- Running Time (Fail-safe) : <15 s
- Protection category : IP30
- Degree Of Protection NEMA : NEMA 1
- Enclosure Type : UL Enclosure Type 1
- Ambient Tempreture : 32...122°F [0...50°C ]
