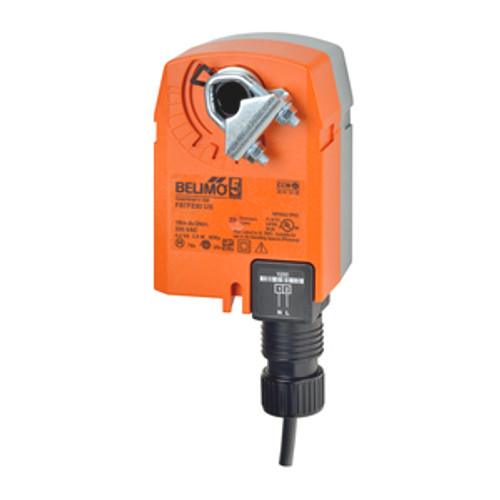

Belimo product FSTF230.1 US technical information.
Technical Specifications:
- Voltage AC/DC: AC\xa0230\xa0V
- Power Consumption (Running) FS: 5 W
- Power Consumption (Holding) FS: 4.5 VA
- Torque: 18\xa0in-lb [2\xa0Nm]
- Control Type: On/Off
- Direction Of Motion Motor: selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Angle of Rotation: 95
- Running Time (Motor): 75\xa0s / 90°
- Running Time (Fail-safe): <25\xa0s
- Protection category: IP42
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: 32...122°F [0...50°C ]
Product Literature:
Brand: Belimo
SKU: FSTF230.1 US
