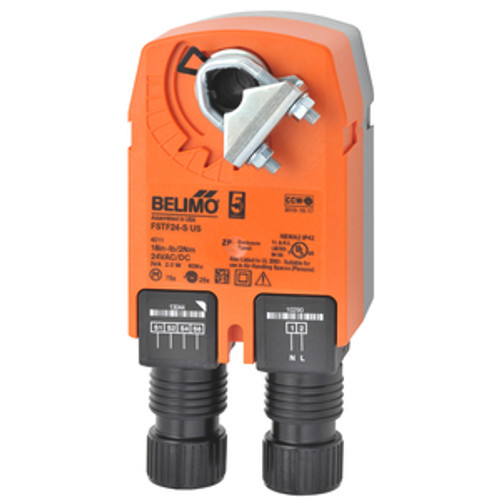

Fire & Smoke Actuator, 18 in-lb [2 Nm], Spring return, AC/DC 24 V, On/Off, 2x SPST
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 2 W
- Power Consumption (Running) FS : 2 W, 3 VA
- Power Consumption (Holding) FS : 1.5 W, 2 VA
- Power Consumption For Wire Sizing : 5 VA
- Auxiliary Switches : 2x SPST
- Torque : 18 in-lb [2 Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 75 s / 90°
- Running Time (Fail-safe) : <25 s
- Protection category : IP42
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Tempreture : 32...122°F [0...50°C ]
