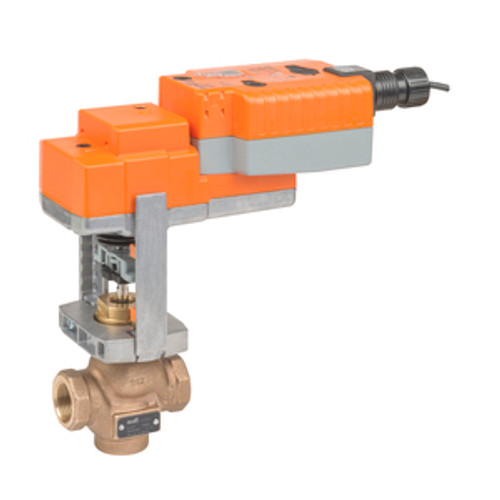

Globe Valve (GV), 2", 2-way, ANSI Class 250, Cv 40 Valve Actuator, Electrical fail-safe, AC 24 V, On/Off, Floating pointActuator fitted
- ANSI Class : 250
- Pattern : 2-way
- Cv : 40
- Body Pressure Rating : ANSI Class 250, up to 400 psi below 150°F
- Flow characteristic {Tools} : Modified equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 2" [50]
- Voltage AC/DC : AC 24 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 1.5 W
- Power Consumption For Wire Sizing : 6 VA
- Control Type : Floating/3-point
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
