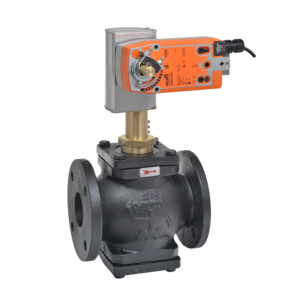

Globe Valve (GV), 2 1/2", 2-way, ANSI Class 250, Cv 65 ConfigurableValve Actuator, Spring return, AC/DC 24 V, 0...135 Ω, MFT/programmableActuator fitted
- ANSI Class : 250
- Pattern : 2-way
- Cv : 65
- Body Pressure Rating : ANSI Class 250, up to 280 psi below 350°F
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 2.5" [65]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 7.5 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 10 VA
- Control Type : 0...135 Ω
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
