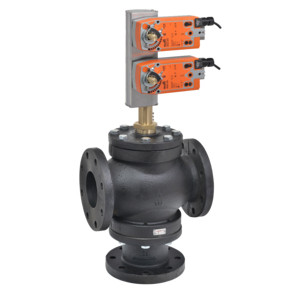

Belimo product G680C-250+2*AFX24-MFT95-X1 technical information.
Technical Specifications:
- Angle of Rotation: 95
- ANSI Class: 250
- Close-off Pressure: 310 psi
- Controllable Flow Range: Stem up - open A – AB
- Cv: 90
- End Fitting: Flange
- Fluid: Chilled or hot water, up to 60% glycol, steam
- Pattern: 2-way
- Pressure Independent: NO
- Trim: Bronze
- Valve Size: 3"" [80]
- Actuator Type: Spring return
- Degree of Protection: IP54, NEMA 2, UL Enclosure Type 2
- Electrical Connection: cable
- Manual Override: 5 mm hex crank (3/16"" Allen), supplied
- Power Consumption (Holding): 3 W
- Power Consumption (Running): 7.5 W
- Running Time (Motor): Default 150 s, variable 70...220 s
- Voltage AC/DC: AC/DC 24 V
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
- Download product literature 6
- Download product literature 7
- Download product literature 8
Brand: Belimo
SKU: G680C-250+2*AFX24-MFT95-X1
