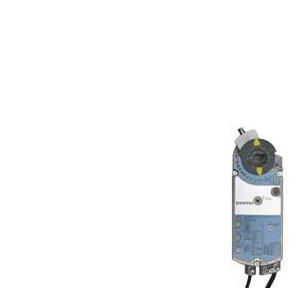

GCA151.1P - SR 160 lb-in, 24Vac/dc, 2-10Vdc, 90s Run, Feedback, Signal Inv, Plen
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 160 lb-in
- Positioning time: Open:90 s, Close:15 s
- Position feedback: Yes
- Power consumption: Running: 7 VA / 5 W, Holding: 5 VA / 3 W
- Ambient humidity, operation: 95 % r.h.
- Angular rotation: 90°
- Operating voltage: 7…28.8 V24 V#AC/DC
- Frequency: 50/60 Hz
- Cable length: 3 ft
- Dimensions (W x H x D): 4.75 x 11.81 x 2.88 in
- Material, housing: NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection: IP54
Product Literature:
Brand: Siemens
SKU: GCA151.1P
