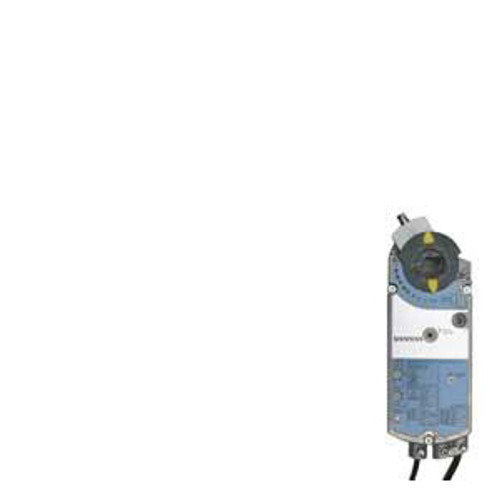

GCA161.1P/B - SR 160 lb-in, 24Vac/dc, 0-10Vdc Control, 90s Run, Feedback, Plenum, 8pk
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 160 lb-in
- Positioning time: Open:90 s, Close:15 s
- Position feedback: Yes
- Power consumption: Running: 7 VA / 5 W, Holding: 5 VA / 3 W
- Angular rotation: 90°
- Operating voltage: 24 VAC, 24 VDC
- Frequency: 50/60 Hz
- Cable length: 3 ft
- Dimensions (W x H x D): 4.75 x 11.81 x 2.88 in
- Material, housing: NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Product Literature:
Brand: Siemens
SKU: GCA161.1P/B
