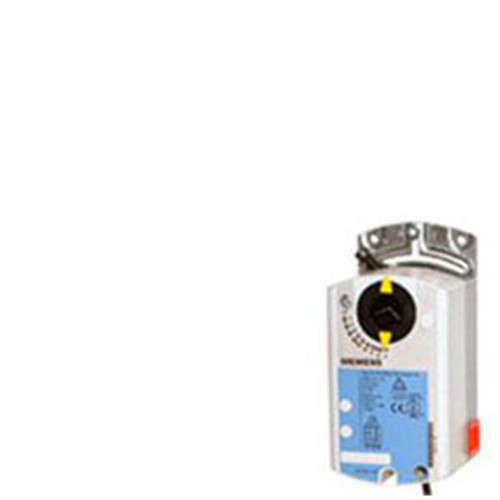

GDE346.1U - Damper Actuator 44 lb-in,NSR,120V,2PT/3PT,standard,aux sw
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 44 lb-in
- Positioning time: 50 Hz:108 s, 60 Hz:90 s
- Position feedback: No
- Power consumption: 5.0 VA, 1.6 W
- Ambient humidity, operation: 95 % r.h.
- Angular rotation: 90°
- Operating voltage: 100…240 V24 V#AC
- Frequency: 50/60 Hz
- Auxiliary switch: 2
- Cable length: 3 ft
- Dimensions (W x H x D): 2.7 x 6.6 x 2.4 in
- Material, housing: NEMA 2, IP54 per EN60529, durable plastic
- Degree of protection: IP54
Product Literature:
Brand: Siemens
SKU: GDE346.1U
