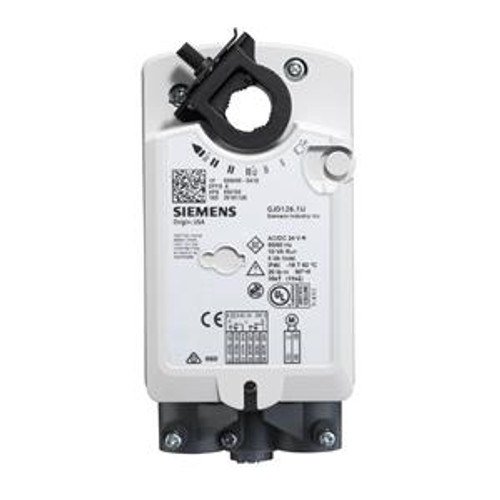

GJD321.1U - GJD321.1U 20 lb-in,SR,2PT,230V,FS
Technical Specifications:
- Actuator Type: Electronic Fire and Smoke
- Actuation Style: Rotary
- Control or Fire/Smoke Type: Fire/Smoke Control Damper
- Electronic Fusible Link (EFL): YES
- Plenum or Standard Rating: Standard
- Torque: 20 lb-in
- Fail Safe: Yes
- Spring return function: Spring return function
- Control Signal: 2-position
- Positioning time: Operating: 30 s, Closing (power loss) with spring return: Typical 15 s
- Position feedback: No
- Power consumption: Running: 12 VA / 5 W, Holding: 7 VA / 3 W
- Ambient temperature, operation: -18…55 °C
- Angular rotation: 95°
- Operating voltage: 230 VAC
- Supply Voltage: 230 VAC
- Frequency: 50/60 Hz
- Auxiliary Switch: No
- Cable length: 3 ft
- Dimensions (W x H x D): 2.83 x 5.61 x 2.48 in
- Material, housing: NEMA 1, plenum-rated plastic
- Standard: UL60730
Product Literature:
Brand: Siemens
SKU: GJD321.1U
