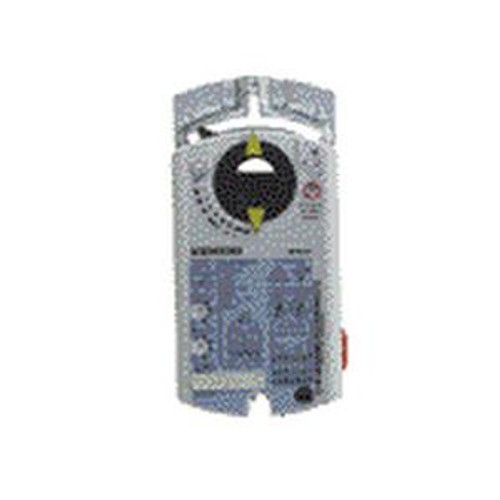

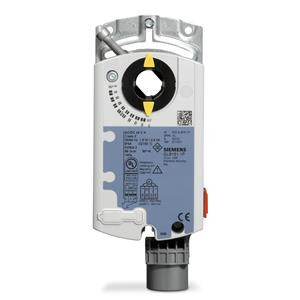

GLB161.1P - Non-spring Return 88 lb-in (10Nm), 24Vac, 0-10 Vdc Control, 125sec Run, Plenum
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 88 lb-in
- Positioning time: 50 Hz:150 s, 60 Hz:125 s
- Position feedback: Yes
- Power consumption: 3.3 VA
- Ambient humidity, operation: 95 % r.h.
- Angular rotation: 90°
- Operating voltage: 19.2…28.8 V24 V#AC/DC
- Frequency: 50/60 Hz
- Cable length: 3 ft
- Dimensions (W x H x D): 2.75 x 5.44 x 2.38 in
- Material, housing: NEMA Type 2, IP54 according to EN 60 529
- Degree of protection: IP55
Product Literature:
Brand: Siemens
SKU: GLB161.1P
