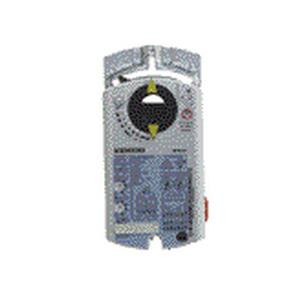

GLB166.1P - Non-spring Return, 88 lb-in, 24Vac, 0-10Vdc Control, 125sec Run, 2-Aux, Plenum
- Control or Fire/Smoke Type : Control Damper
- Torque : 88 lb-in
- Positioning time : 50 Hz:150 s, 60 Hz:125 s
- Position feedback : Yes
- Power consumption : 3.3 VA
- Ambient humidity, operation : 95 % r.h.
- Angular rotation : 90°
- Operating voltage : 19.2…28.8 V24 V#AC/DC
- Frequency : 50/60 Hz
- Auxiliary switch : 2
- Cable length : 3 ft
- Dimensions (W x H x D) : 2.75 x 5.44 x 2.38 in
- Material, housing : NEMA Type 2, IP54 according to EN 60 529
- Degree of protection : IP54
