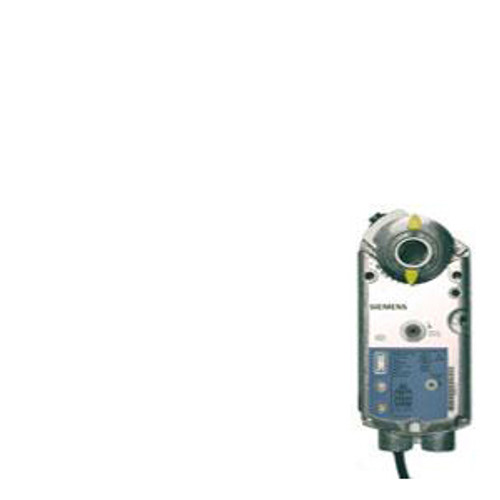

GMA226.1U - Damper Actuator, SR, 62 lb-in
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 62 lb-in
- Positioning time: Open:90 s, Close:15 s
- Position feedback: No
- Power consumption: Running and Holding: 7 VA / 5 W
- Ambient humidity, operation: 95 % r.h.
- Angular rotation: 90°
- Operating voltage: 120 VAC
- Frequency: 50/60 Hz
- Auxiliary switch: 2
- Cable length: 3 ft
- Dimensions (W x H x D): 3.25 x 8.38 x 2.38 in
- Material, housing: NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection: IP54
Product Literature:
Brand: Siemens
SKU: GMA226.1U
