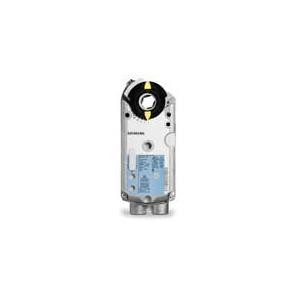

GNP196.1P - Damper Actuator, Fast Acting, Fail Safe 53 lb-in, Switches
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 53 lb-in
- Fail Safe: Yes
- Positioning signal: 0 or 2 to 10 Vdc , 0 or 4 to 20 mA
- Positioning time: Open:2 s, Close:2 s
- Position feedback: Yes
- Power consumption: 28V/19 W
- Ambient temperature, operation: -18…50 °C
- Ambient humidity, operation: 95 % r.h.
- Operating voltage: 24 VAC/DC
- Supply Voltage: 24 VAC/DC
- Frequency: 50/60 Hz
- Auxiliary switch: 2
- Cable length: 3 ft
- Dimensions (W x H x D): 3.25 x 8.38 x 2.38 in
- Material, housing: NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection: IP54
Product Literature:
Brand: Siemens
SKU: GNP196.1P
