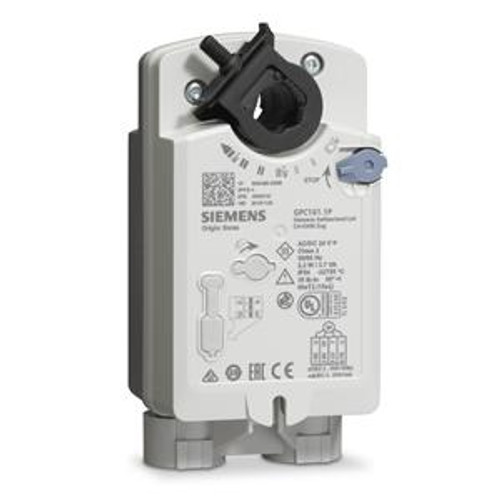

GPC321.1U - Damper Actuators 35 lb-in, SR, 2PT, 120VAC
Technical Specifications:
- Actuator Type: Spring return
- Actuation Style: Rotary
- Control or Fire/Smoke Type: Control Damper
- Plenum or Standard Rating: Standard
- Torque: 35 lb-in
- Fail Safe: Yes
- Control Signal: 2-position
- Positioning time: Runtime for 90° 60 s
- Position feedback: No
- Power consumption: Running: 4.6 VA (2.4 W), Holding: 3.5 VA (1.7 W)
- Ambient temperature, operation: -25 to 130 °F, -32 to 55 °C
- Angular rotation: 90°
- Operating voltage: 120-230 VAC
- Supply Voltage: 120 to 230 VAC
- Frequency: 50/60 Hz
- Auxiliary Switch: No
- Cable length: 3 ft
- Dimensions (W x H x D): 2.83 x 5.61 x 2.48 in
- Material, housing: NEMA 1, Plenum rated rugged plastic
- Number of full cycles: 100000
- Number of partial cycles: 5000000
- Rated impulse voltage: 4000 V
- Type of action: Type 1
- Pollution degree: 3
- Mounting location: interior, weather-protected
Product Literature:
Brand: Siemens
SKU: GPC321.1U
