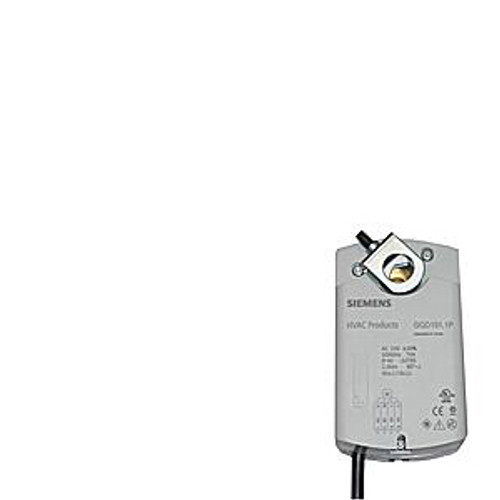

GQD126.1P - Spring Return Rotary, 20 lb-in, 24Vac/dc, 2-pos, 30s Run, Aux Switches, Plenum
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 20 lb-in
- Positioning time: Open:30 s, Close:15 s
- Position feedback: No
- Power consumption: Running: 6.5 VA /4.5W, Holding: 4 VA / 2.5 W
- Ambient humidity, operation: 95 % r.h.
- Angular rotation: 90°
- Operating voltage: 24 VAC/DC
- Frequency: 50/60 Hz
- Auxiliary switch: 2
- Cable length: 3 ft
- Dimensions (W x H x D): 2.72 x 5.5 x 2.47 in
- Material, housing: NEMA 1, plenum-rated rugged plastic, IP40
- Degree of protection: IP40
Brand: Siemens
SKU: GQD126.1P
