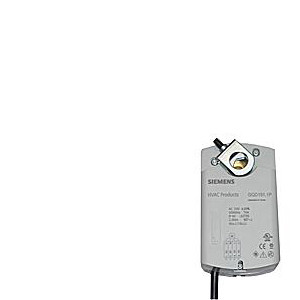

GQD131.1P/B - Spring Return Rotary, 20 lb-in, 24Vac/dc, Float Control, 30s Run, Plenum, 10pk
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 20 lb-in
- Positioning time: Open:30 s, Close:15 s
- Position feedback: No
- Power consumption: Running: 4 VA / 2.5 W, Holding: 3 VA / 1.5 W
- Angular rotation: 90°
- Operating voltage: 24 VAC, 24 VDC
- Frequency: 50/60 Hz
- Cable length: 3 ft
- Dimensions (W x H x D): 2.72 x 5.5 x 2.47 in
- Material, housing: NEMA 1, plenum-rated rugged plastic, IP40
- Number of full cycles: 60000
- Rated impulse voltage: 800 V
- Type of action: Type 1
- Pollution degree: 3
- Mounting location: interior, weather-protected
Brand: Siemens
SKU: GQD131.1P/B
