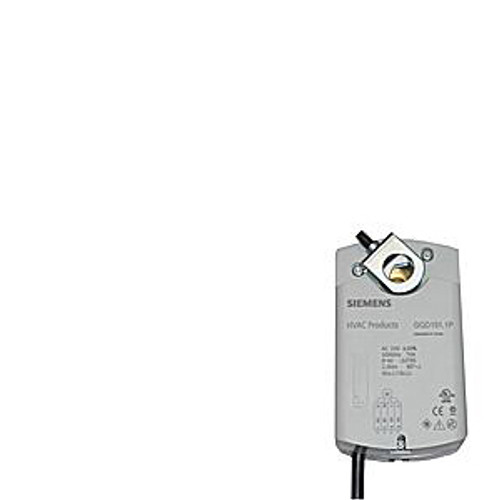

GQD151.1P - Spring Return Rotary, 20 lb-in, 24Vac/dc, 2-10 Vdc Control, 30sec Run, Plenum
Technical Specifications:
- Control or Fire/Smoke Type: Control Damper
- Torque: 20 lb-in
- Positioning time: Open:30 s, Close:15 s
- Position feedback: Yes
- Power consumption: Running: 4.5 VA / 3 W, Holding: 3.5 VA / 2 W
- Ambient humidity, operation: 95 % r.h.
- Angular rotation: 90°
- Operating voltage: 19.2…28.8 V24 V#AC/DC
- Frequency: 50/60 Hz
- Cable length: 3 ft
- Dimensions (W x H x D): 2.72 x 5.5 x 2.47 in
- Material, housing: NEMA 1, plenum-rated rugged plastic, IP40
- Degree of protection: IP40
- Number of full cycles: 60000
- Rated impulse voltage: 800 V
- Type of action: Type 1
- Pollution degree: 3
- Mounting location: interior, weather-protected
Product Literature:
Brand: Siemens
SKU: GQD151.1P
