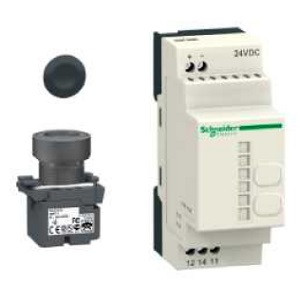

Harmony Pack XB5R|Product or Component Type: Wireless and batteryless package|Head Material: Plastic|Kit Composition: 1 plastic push-button, 1 receiver and 1 set of caps|Control Type: Wireless and batteryless push-button 22mm assembled on fixing collar|Type of Receiver: Non-programmable receiver (1 relay)|Rated Supply Voltage: 24V DC|Number of Channels: 1
- [Us] rated supply voltage : 24 V~~
- [Us] rated supply voltage : 24 V
- Antenna Gain : 0 dBi
- antenna type : Omnidirectional
- bandwidth : 5 MHz
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 31
- Communication Port Protocol : Zigbee IEEE 802.15.4
- customizable : 0
- customizable : No
- Device Short Name : XB5R
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- Global Keywords : Black
- Global Keywords : Circular
- Global Keywords : Clip-together component system
- Global Keywords : Complete unit
- Global Keywords : Double insulated plastic bezel
- Global Keywords : Dust resistant
- Global Keywords : Flush
- Global Keywords : Impact resistant
- Global Keywords : Indicator LEDs
- Global Keywords : Modular
- Global Keywords : Push Button and receiver unit
- Global Keywords : Pushbutton
- Global Keywords : Schneider electric
- Global Keywords : Screw clamp terminal connection
- Global Keywords : Spring return
- Global Keywords : Unmarked
- Global Keywords : Water Resistant
- Global Keywords : Wireless Push-Button
- Global warming ; Total life cycle? : 31 kg CO2 eq.
- head material : Plastic
- Kit Composition : 1 0.9 in (22 mm)
- Kit Composition : 1 fixing collars
- Kit Composition : 1 push-button head 0.9 in (22 mm)
- Kit Composition : 1 receiver
- Kit Composition : 1 set of caps
- Kit Composition : 1 transmitter
- level or class : 5M00G7W
- Manufacturer : Schneider Electric
- Marking : CE
- Max Power Consumption In W : 1 mW
- Modulation Technique : O-QPSK
- Number Of Channels : 1
- Number of Units in Package 2 : 16
- Package 2 GTIN : 43606480334441
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 8.082 lb(US) (3.666 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Product Certifications : CCC
- Product Certifications : CSA
- Product Certifications : C-tick
- Product Certifications : GOST
- Product Certifications : UL
- Product Or Component Type : Wireless and batteryless package
- radio agreement : ANATEL
- radio agreement : ARIB T66
- radio agreement : FCC
- radio agreement : ICASA
- radio agreement : RSS
- radio agreement : SRRC
- SCIP Number : 25b7f895-3732-43c8-9910-ef6005058640
- Standards : CSA C22.2 No 14
- Standards : IEC 60947-1
- Standards : IEC 60947-5-1
- Standards : UL 508
- Supply Circuit Type : DC
- Take-back : No
- Transmission Frequency : 2405 MHz receiver
- Transmission Frequency : 2405 MHz transmitter
- Type Of Receiver : Non-programmable receiver 1 relay)
- Unit Type of Package 2 : S03
- UNSPSC Classification v19 : 39122216
- UNSPSC Classification v23 : 39122216
- Volume of Package 2 : 36000.000 cm3
- Warranty : 18 months
