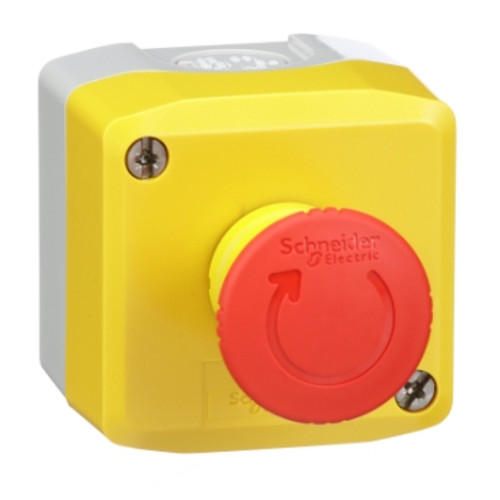

XALK178F

[Ie] rated operational current :

0.1 A 600 V, DC-13, Q600 IEC 60947-5-1~~

[Ie] rated operational current :

0.27 A 250 V, DC-13, Q600 IEC 60947-5-1

[Ie] rated operational current :

0.55 A 125 V, DC-13, Q600 IEC 60947-5-1

[Ie] rated operational current :

1.2 A 600 V, AC-15, A600 IEC 60947-5-1

[Ie] rated operational current :

3 A 240 V, AC-15, A600 IEC 60947-5-1

[Ie] rated operational current :

6 A 120 V, AC-15, A600 IEC 60947-5-1

[Ith] conventional free air thermal current :

10 A IEC 60947-5-1

[Ui] rated insulation voltage :

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage :

6 kV IEC 60947-1

Brand :

Schneider Electric

By Schneider :

Yes

cable entry :

1 knock-out for cable entry 0…0.6 in (0…14 mm)

cable entry :

2 knock-outs for Pg 13 cable gland and ISO M20 0…0.5 in (0…12 mm)

Carbon footprint (kg CO2 eq, Total Life cycle) :

1

colour of base of enclosure :

Light grey RAL 7035)

colour of cover :

Yellow RAL 1021)

Connections - Terminals :

Screw clamp terminals

Connections - Terminals :

Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Contact Operation :

Slow-break

Contacts Material :

Silver alloy (Ag/Ni)

control station application :

Emergency stop function

control station application :

Emergency switching off function

control station composition :

1 mushroom head Ø 40 mm push-button, red 2 NC unmarked

Device Short Name :

XALK

Electrical Durability :

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

electrical reliability :

?

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

2 NC Contact

Global Keywords :

22 mm diameter

Global Keywords :

Emergency Stop

Global Keywords :

Emergency switching OFF

Global Keywords :

IP66

Global Keywords :

Light grey base

Global Keywords :

Polycarbonate

Global Keywords :

Red mushroom head bushbutton

Global Keywords :

Schneider electric

Global Keywords :

Screw clamp

Global Keywords :

Slow-break

Global Keywords :

Trigger action

Global Keywords :

Turn to Release

Global Keywords :

XALK

Global Keywords :

Yellow control station

Global Keywords :

Yellow lid

Global warming ; Total life cycle? :

1 kg CO2 eq.

IK Degree of Protection :

IK03 conforming to IEC 62262

IP Degree of Protection :

IP66 IEC 60529

IP Degree of Protection :

IP67

IP Degree of Protection :

IP69

IP Degree of Protection :

IP69K

Manufacturer :

Schneider Electric

Material :

Polycarbonate

Mechanical Durability :

300000 cycles

NEMA degree of protection :

NEMA 13

NEMA degree of protection :

NEMA 4X

Net Weight :

0.428 lb(US) (0.194 kg)

Number of Units in Package 2 :

40

Number of Units in Package 3 :

320

operating force :

44 N

operating travel :

0.06 in (1.5 mm) NC changing electrical state)

operating travel :

0.2 in (4.3 mm) total travel)

operator profile :

1 mushroom head push-button

operators description :

Red unmarked 2 NC

Overvoltage Category :

Class II conforming to IEC 60536

Package 2 GTIN :

43389110113646

Package 2 Height :

11.81 in (30.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

15.878 lb(US) (7.202 kg)

Package 2 width :

11.81 in (30.000 cm)

Package 3 Height :

29.53 in (75.000 cm)

Package 3 Length :

31.50 in (80.000 cm)

Package 3 Weight :

149.835 lb(US) (67.964 kg)

Package 3 width :

23.62 in (60.000 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

positive opening :

With IEC 60947-5-1 appendix K

Product Destination :

For XB5 Ø 22 mm control and signalling units

Product Or Component Type :

Complete control station

Protective Treatment :

TH

REACh free of SVHC :

Yes

Reset :

Turn to release

resistance to high pressure washer :

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

shape of screw head :

Cross Philips no 1

shape of screw head :

Cross pozidriv No 1

shape of screw head :

Slotted flat Ø 4 mm

shape of screw head :

Slotted flat Ø 5.5 mm

shock resistance :

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

shock resistance :

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

short-circuit protection :

10 A cartridge fuse gG IEC 60947-5-1

Standards :

CSA C22.2 No 14

Standards :

IEC 60204-1

Standards :

IEC 60364-5-53

Standards :

IEC 60947-1

Standards :

IEC 60947-5-1

Standards :

IEC 60947-5-4

Standards :

IEC 60947-5-5

Standards :

ISO 13850

Standards :

UL 508

Standards :

UL 60947-1

Standards :

UL 60947-5-1

Standards :

UL 60947-5-5

Take-back :

No

Temperature Ambient Operating Range :

-40…158 °F (-40…70 °C)

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

Tightening Torque :

7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

S03

Unit Type of Package 3 :

P06

UNSPSC Classification v19 :

39122216

UNSPSC Classification v23 :

39122216

vibration resistance :

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Volume of Package 2 :

36000.000 cm3

Volume of Package 3 :

360000.000 cm3

Warranty :

18 months
