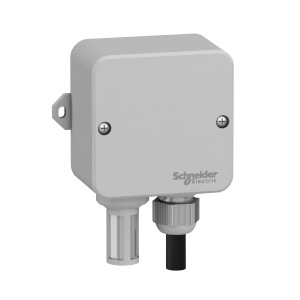

Humidity sensor, 4-20 mA | Device mounting : Wall mounted Mounting support : Mounting box Rated supply voltage : 9...28 V DC Maximum Power Consumption : 20 mA Output type : Current 4...20 mA +/- 3 % RH Product specific application : Humidity control Electrical connection : Screw-clamp terminals Fixing mode : 2 fixing points Width : 100 mm Height : 122 mm Depth : 50.5 mm Net weight : 0.14 kg
- [Us] rated supply voltage : 9...28 V DC~~
- Accessory / Separate Part Category : Measurement accessory
- Accessory / Separate Part Type : Probe
- average consumption in mA : 20 mA
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 20
- Depth : 2.0 in (50.5 mm)
- Device Mounting : Wall mounted
- Electrical Connection : Screw-clamp terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Fixing Mode : 2 fixing points
- Global Keywords : Damp probe
- Global Keywords : Humidity measurement accessory
- Global Keywords : Humidity probe
- Global Keywords : Humidity Sensor
- Global Keywords : Indoor sensor
- Global Keywords : Moisture control
- Global Keywords : Moisture sensor
- Global Keywords : Wall-mounting probe
- Global warming ; Total life cycle? : 20 kg CO2 eq.
- Height : 4.8 in (122 mm)
- IP Degree of Protection : IP65
- Manufacturer : Schneider Electric
- Mounting Support : Mounting box
- Net Weight : 0.31 lb(US) (0.14 kg)
- Number of Units in Package 2 : 24
- Output Type : Current 4...20 mA +/- 3 % RH
- Overvoltage Category : I
- Package 2 GTIN : 43606481390149
- Package 2 Height : 11.81 in (30.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 13.349 lb(US) (6.055 kg)
- Package 2 width : 11.81 in (30.0 cm)
- Packaging without single use plastic : Yes
- Pollution Degree : 2
- Product Certifications : CE
- Product Certifications : CULus
- Product Certifications : EAC
- Product Certifications : UKCA
- Product Specific Application : Humidity control
- Relative Humidity : 0…100 %
- SCIP Number : 2c365b3a-5b0a-48fd-acc7-751c89a723a2
- Take-back : No
- Temperature Ambient Operating Range : -40…140 °F (-40…60 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Unit Type of Package 2 : S03
- UNSPSC Classification v19 : 32151703
- UNSPSC Classification v23 : 32151703
- Volume of Package 2 : 36000.0 cm3
- Width : 3.9 in (100 mm)
