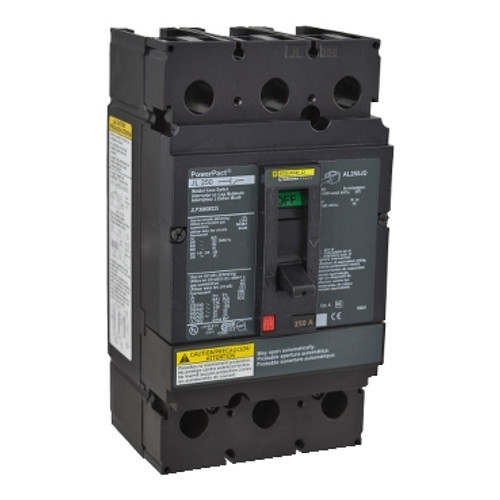

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT J automatic switches comply to UL and CSA standards.
- Product or Component Type : Automatic switch
- Range of Product : PowerPact J
- Trip unit technology : Magnetic
- Line Rated Current : 250 A
- [Ue] rated operational voltage : 600 V AC, 250 V DC
- Mounting Mode : Unit mount
- Poles description : 3P
- Short-circuit withstand : 125 kA 240 V UL 489, 100 kA 480 V UL 489, 50 kA 600 V UL 489, 20 kA 250 V UL 489
- Breaking capacity code : L
- Electrical connection : Lugs, load, Terminal nut, line
- AWG gauge : x AWG 3/0...350 kcmil ( aluminium/copper )
- Terminal identifier : AL250JD
- Magnetic tripping current : 3125 A
- Height : 7.52 in (191.01 mm)
- Width : 4.12 in (104.65 mm)
- Depth : 5 in (127.00 mm)
- Tightening torque : 230.12 lbf.in (26 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
- Product Certifications : IEC, CSA, CCC, UL Listed, CE, NMX
- Category : US10DE201120
- Discount Schedule : 0DE2
- GTIN : 785901661023
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.13 in (13.018 cm)
- Package 1 Width : 7.25 in (18.415 cm)
- Package 1 Length : 8.44 in (21.433 cm)
- Package 1 Weight : 4.82 lb(US) (2.185 kg)
- Warranty : 18 months
