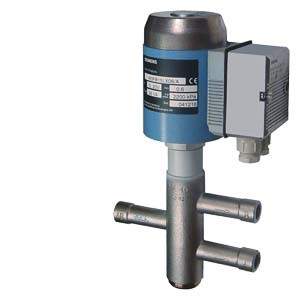

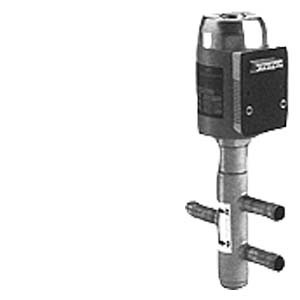

M3FB20LX/A - 0 to 10V 3/4"Valve, Hot Gas Bypass, 5.8 Cv, 460 PSI
Technical Specifications:
- Power consumption: 26 VA
- Stroke resolution ΔH/H 100: 1:200
- Material, valve body: Steel
- Ambient temperature, operation: -40…50 °C
- Degree of protection: IP54
- Leakage rate: 0.05 % of kvs
- Material, inside set: CrNi steel/brass
- Medium temperature: -40…120 °C
- Mounting position: Any
- Nominal pressure: PN 32
- Operating voltage: 24 VAC
- Permissible operating pressure: 4300 kPa
- Positioning signal: DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
- Positioning time: 1 s
- Spring return function: AB-> A closed
- Valve characteristic: Linear
- Δp max: 1800 kPa
- Dimensions (W x H x D): 7.09 x 13.27 x 4.02 in
- k vs: 5 m³/h
- DN: 20
Product Literature:
Brand: Siemens
SKU: M3FB20LX/A
